Along with the development OF the electric technology, SMT is used more and more widely. The mini type product LINE which is larva by Torch is good for the popularization OF SMT. Torch wants contribute itself to the development OF the electric industry OF China. According to practical requirement OF the clients, T200A is designed and manufactured by Torch technologists on the base OF technical accumulation for many years. It up has many specialties look as high precision, multi function; practicality; steady capability; long would run; energy-saving with high efficiency; viewable operation. It is been adapted in research centers, were industry, middle and small sized corporation, small Private corporation and of other electronics production companies.
Introduction
Along with the development of the electric technology, SMT is used more and more widely. The mini-type product line which is made by Torch is good for the popularization of SMT. Torch will contribute itself to the development of the electric industry of China.

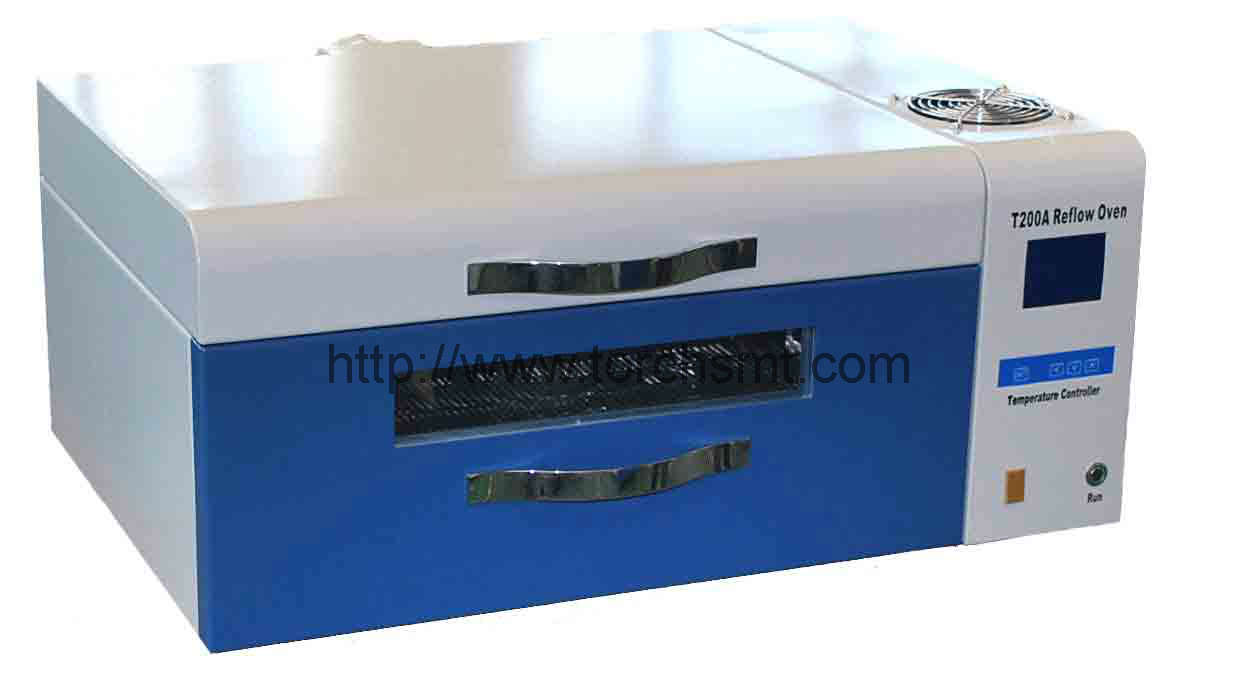

According to practical requirement of the clients, T200A is designed and manufactured by Torch technologists on the basis of technical accumulation for many years. It has many specialties such as high precision, multi-function; practicality; steady capability; long life; energy-saving with high efficiency; viewable operation. It is been adapted in research center, war industry, middle- and small-sized corporation, small Private Corporation and other electronic production companies.
Main features:
A. High precision. Multi-function. It satisfies all welding requirements of 0201 resistance and capacitance, fine spacing QFP, SOP, PLCC, BGA,CSP and so on. It meets the requirements of small batch and multimode product. It is also suitable for laboratory to take research.
B. Energy-saving with high efficiency; A machine with several uses. It can be used to solidify SMT -Adhesive.
C.Long life and smooth capability.
D.Visible operation. It is the best choice for teaching and scientific research.
Main technical parameter :
| Item | Parameter |
| Temperature control segment | 20-40 segments. the numbers of temperature control segment and the temperature control accuracy are the highest in Market. User can set the segment according to the requirements in soldering machine. |
| Temperature-zone numbers | Single segment and multi-segment control |
| Temperature control system | Automatic temperature control with PID intelligence microcomputer. SSR non-contact output. |
| Temperature accuracy | ±2℃ |
| Warm-up time | 2min |
| Temperature range | Room-temperature-350℃,high temperature resistant material, it is suitable for small-batch lead-free soldering. |
| Heating supply | Infrared ray + Hot air convection |
| Effective working table area | 360mm*230mm(less than A4) |
| Welding time | 3min±1min |
| Temperature curve | More temperature curve CAN fuel element set in pay coil machine according to the requirements. |
| Cooling system | Transverse flow equal cooling |
| Rated VOL-meets | AC single phase, 220V; 50Hz |
| Rated power | 3.8KW |
| Mean power | 1.6kw |
| Weight | 45kg |
| Dimension | Length*width*height 700*460*310mm |
Firmennamen: Beijing Torch Co.,Ltd
