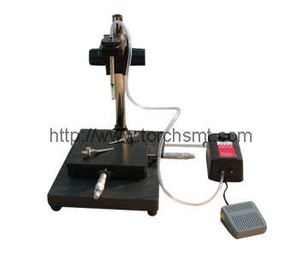

Manual of mounter TP38

Menge:
The Mounter P38 is used together with an antistatic vacuum absorb-pen. The air supply is controlled by a foot switch, all this can achieves exact location and quick mounting of any tiny spacing on chips such as QFP、PLCC、BGA and so on. At the same time X, Y axes have precision setting which can achieve the fine tuning in the X and Y directions. Accuracy of adjustment can be 0.01mm,which make the mounting chips more effective and easier even in the tiny spacing .






               【Trade name】:manual mounter TP38                【Tel】:0086-10-51669522
               【Manufacturer】:Torch Technology                【Model】:TP38
               Introduction】:


                 Technical parameter of TP38:
                 1.Mechanical four-dimensional degree freedom: X, Y axes have precision setting which can achieve the fine tuning in the X and Y directions. Z axis can be adjusted freely from up and down. At the same time the angle θ can be freely circumrotate.
                 2.Weight:about 6.5kg
                 3.Dimension:280mm x 260mm
                 4.Setting accuracy:0.02mm





         【Remark】:



         The Mounter P38 is used together with an antistatic vacuum absorb-pen. The air supply is controlled by a foot switch, all this can achieves exact location and quick mounting of any tiny spacing on chips such as QFP、PLCC、BGA and so on. At the same time X, Y axes have precision setting which can achieve the fine tuning in the X and Y directions. Accuracy of adjustment can be 0.01mm,which make the mounting chips more effective and easier even in the tiny spacing .
